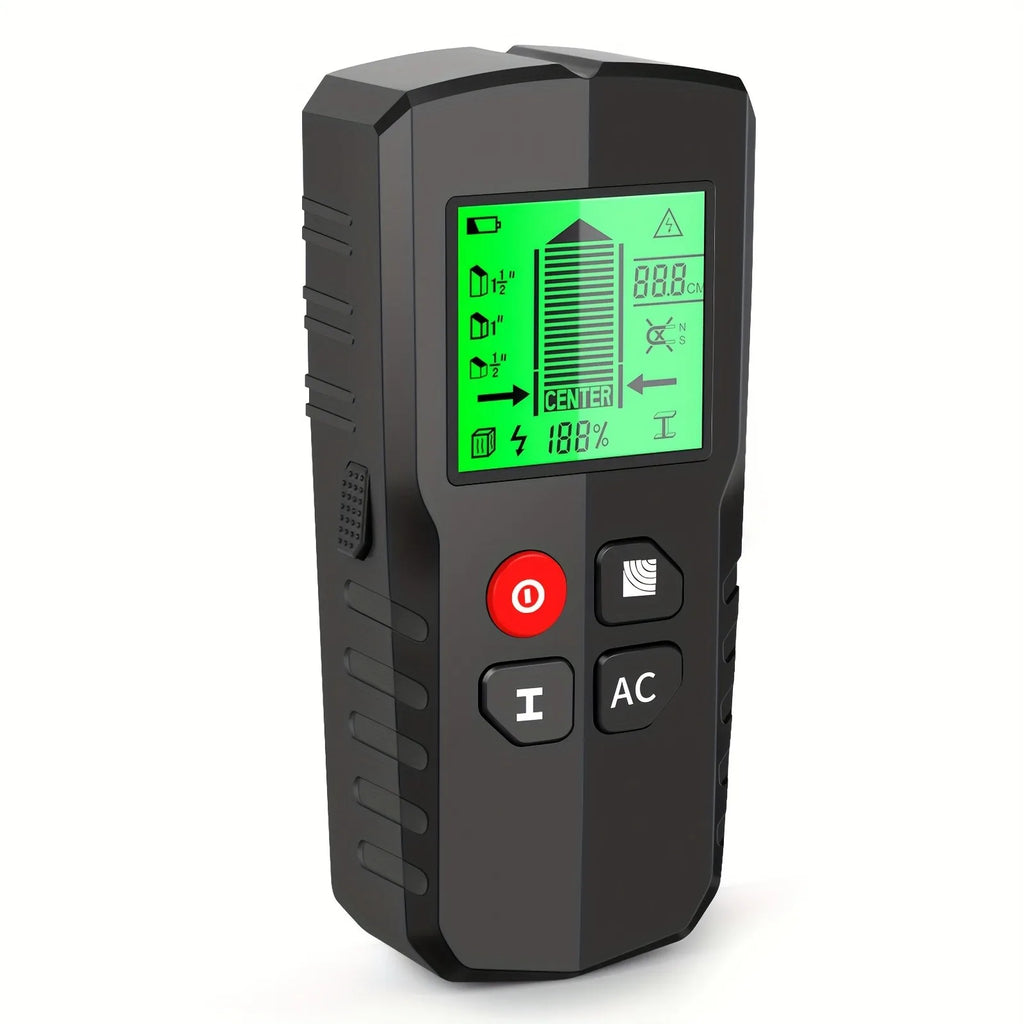

1pc Stud Finder Wall Scanner, 5 In 1 Stud Detector With Intelligent Microprocessor Chip And HD LCD Display, Stud Sensor Beam Fin

$50.26 USD

SPECIFICATIONS

Battery Included: No

Brand Name: NoEnName_Null

Certification: CE,RoHS

Choice: yes

DIY Supplies: Woodworking

Hign-concerned Chemical: None

Model Number: QB5

Origin: Mainland China

Power Source: Battery-Powered

Power Type: Battery-Powered

With LCD Screen Or Not: Yes

Product Features

·1/2"Stud Scan Mode: Detects wood or metal studs up to 13mm deep
·1"Stud Scan Mode: Detects wood or metal studs up to 25mm deep
·1 1/2"Stud Scan Mode: Detects wood or metal studs up to 38mm deep
·Metal Mode: Detects metal up to 80mm for magnetic (60mm for non-magnetic) deep
·AC Mode: Detects live unshielded AC wires up to 51mm deep
·Metal Depth Indicator
·Green Backlight
.Low Voltage Indicator

Low Voltage Indicator

·Battery Type:9V battery(6F22)
·Operating Current:<50ma
·Shutdown Current:<10UA
·Automatic Shutdown Time:3 minutes

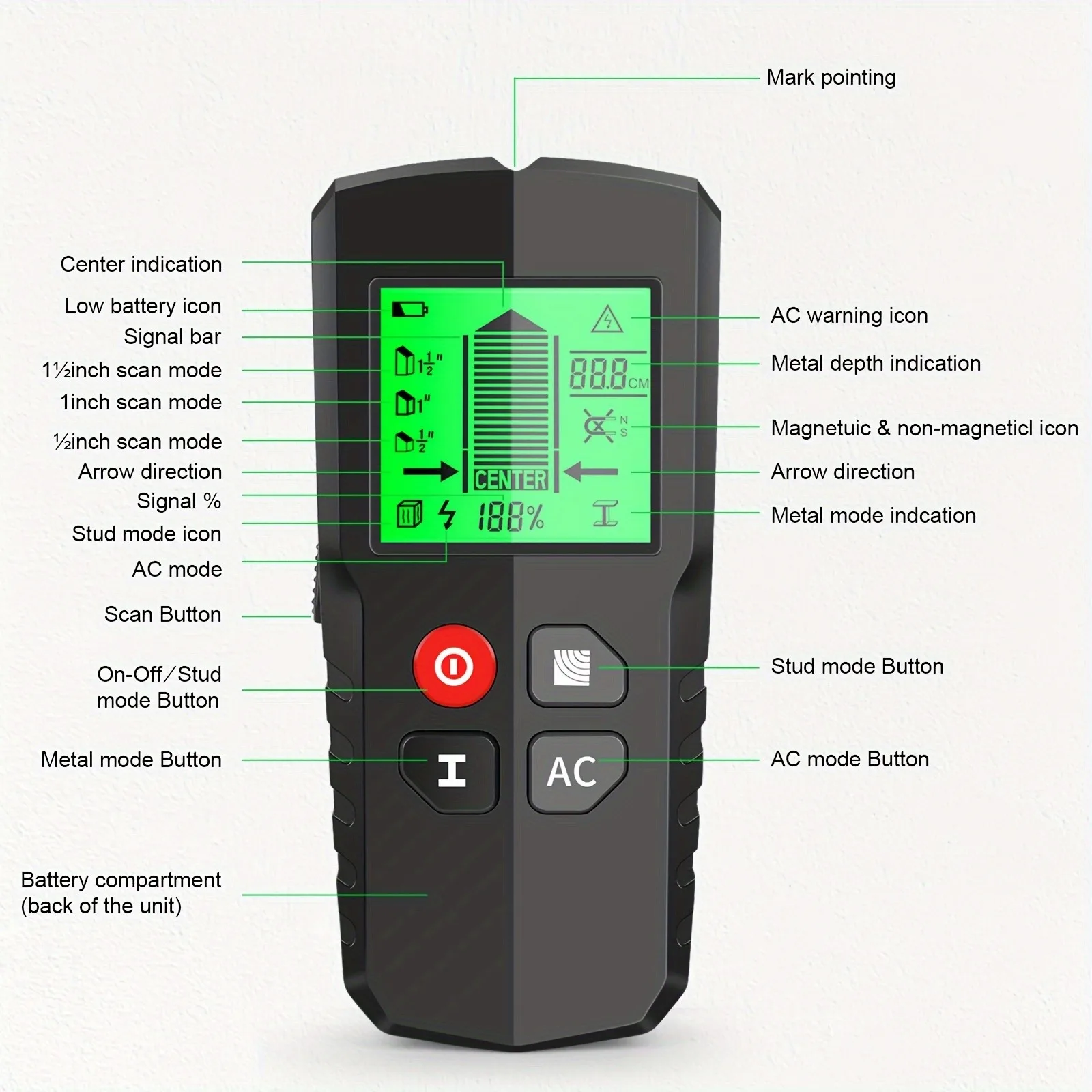

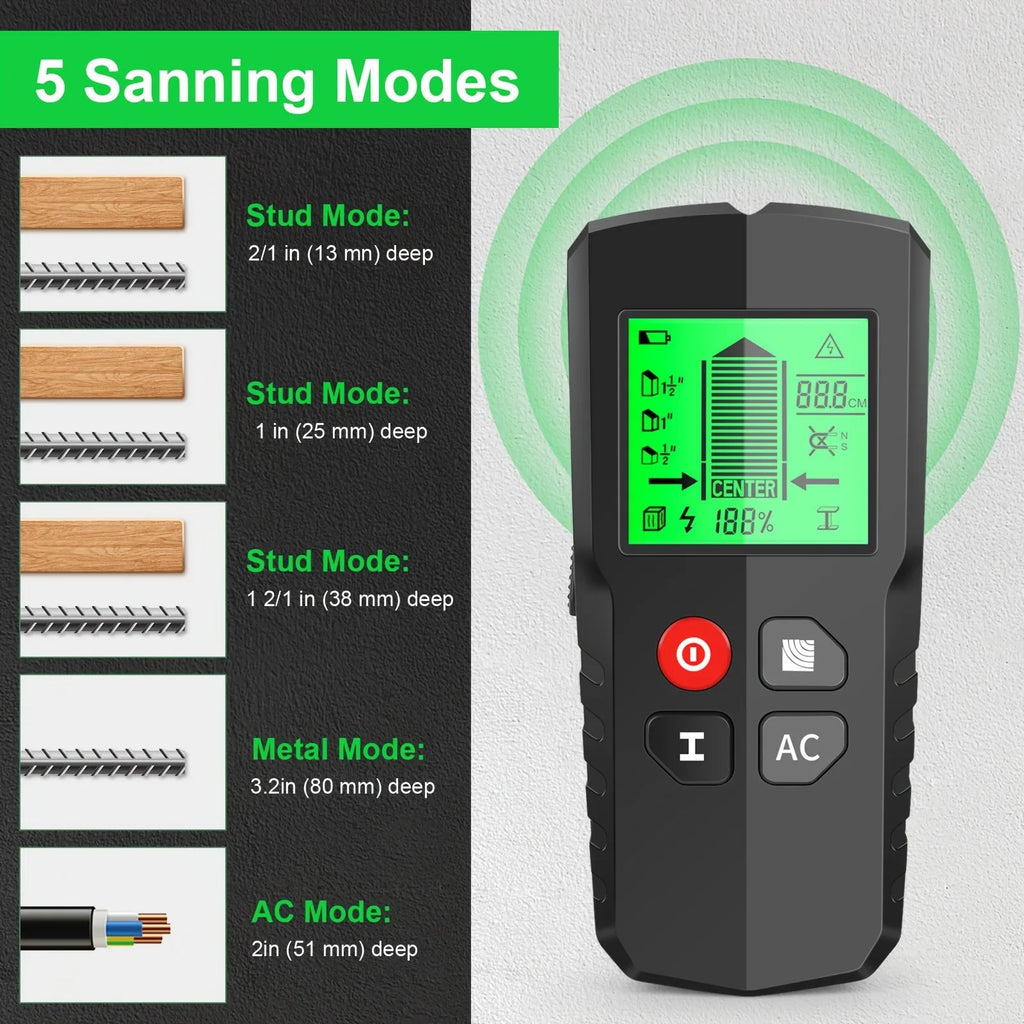

1.Detection Mode Selection

Stud Mode
In stud mode, there are 3 scan modes o choose for properly thick of the

scanning surface:
1/2"Scan Mode can detect 1/2 in. (13mm) deep.
1"Scan Mode can detect 1 in. (25mm) deep.
1 1/2"Scan Mode can detect 1 1/2 in. (38mm) deep.
If you don't know the depth of the detection, it is recommended to use 1/2" scan mode first. When 1/2" scan mode is not detected, use 1" or 1 1/2" scan mode instead.

Metal Mode:
The detection of magnetic metal can be as deep as 3.2 in. (80mm) (diameter 15mm galvanized steel tube)
It can detect non-magnetic metals up to 2.4 in. (60mm) (diameter 13mm copper tube).
